How to Install PeopleSoft on Your Laptop

Starting the Appliance

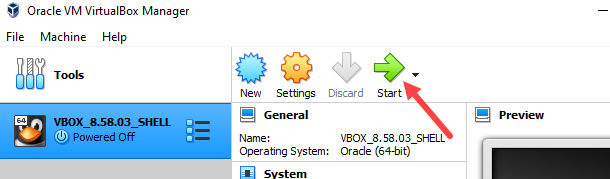

Click the Start button on (green arrow) top of the screen. This would bring up a command prompt window.

After import click start

Unlike in the past, this installation doesn’t provide the default passwords – so be ready to enter these.

Password Criteria

There are some limitations on what special characters can be used in certain passwords.
Keep these in mind when you come up your passwords.

For the following passwords, the special chars supported are ,%-.#*+

Database admin users (SYS/SYSTEM) password
Connect ID password
Operator ID password
Application Server Domain connection password
Integration Gateway user (administrator) password
Integration Gateway Keystore password

For the PeopleSoft WebProfile user password, the special chars supported are %-.#*+
For the Access ID (SYSADM) password, the special chars supported are _#
And for WebLogic Server Admin User password, the special characters supported are !@#$%^&

I’ve used a 9-character password throughout this installation.

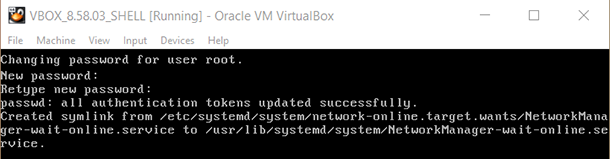

On this screen, you can change the password for root.
Enter the password and make a note of it.

Change root password

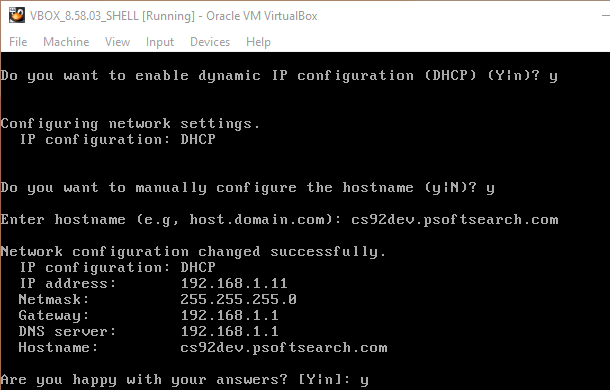

On this screen, enter y to enable DHCP.
Enter y to manually configure the hostname.
Then enter the hostname – I’ve chosen to use

Make a note of the IP address displayed, you will need this later in the process.
Enter y and hit enter if you do not want to change anything.

Enable DHCP and Configure Hostname

Enter PUM as the installation type

Choose PUM  installation type

Enter the name of the database – I’ve chosen to leave it as the default one (CS92U017).
Enter the listener port – again I’ve left it as the default one.

Enter the DB Admin user’s (SYS/SYSTEM) password.

Enter the connect ID. I will stick to the standard connect ID – people

Enter the password for the connect ID.

Enter the password for the DB Access ID (SYSADM)

Database Name

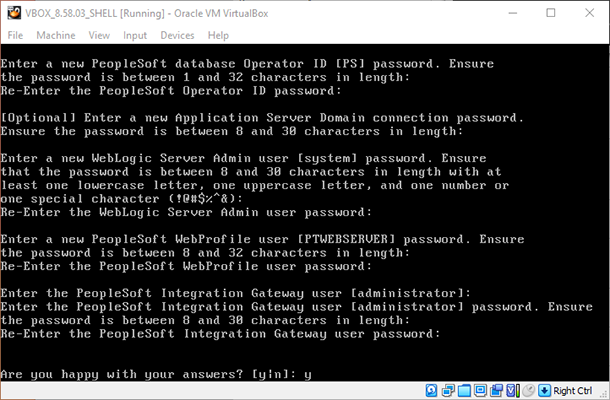

Enter the password for the PS user.

Enter the App server domain connection password.
I’ve not set one as this is optional.

Enter the WebLogic Server Admin user (system) password.
Enter WebProfile user’s (PTWEBSERVER) password.

Enter the Integration Gateway user. I’ve used the default one – administrator
Enter the password Integration Gateway user.

Enter y and hit enter if you do not want to change anything.

Enter y to choose the default initialisation process.

PS User, WebProfile and Integration Gateway

The initialisation process takes some time to do the magic.

Initialisation Process

This screen shows that the setup is complete.

PeopleSoft Install Completed

In the next page, you will see how to access the PIA.
Click on page 4.

Pages — 1 2 3 4
